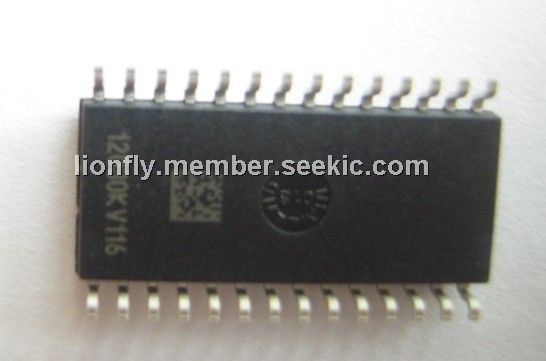

PIC18F2480-I/SO

28-Pin Enhanced Flash Microcontroller, 31 kHz to 32 MHz, 1 μA, 2.0V to 5.5V, 28SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~3.50

PartNumber:: PIC18F2480-I/SO

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-18

From Other Seller

Part Number:PIC18F2480-I/SO
US $3.00 - 3.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC18F2480-I/SO is a 28-Pin Enhanced Flash Microcontroller with ECAN Technology, 10-Bit A/D and nanoWatt Technology. The PIC18F2480-I/SO offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high-endurance, Enhanced Flash program memory. In addition to these features, the PIC18F2480-I/SO introduces design enhancements that make it a logical choice for many high-performance, power-sensitive applications.

Parametrics

PIC18F2480-I/SO absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Total power dissipation: 1.0W; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI >: ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200 mA; (14)Maximum current sourced by all ports: 200 mA.

Features

PIC18F2480-I/SO features: (1)C Compiler Optimized Architecture with Optional Extended Instruction Set; (2)100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical; (3)1,000,000 Erase/Write Cycle Data EEPROM Memory Typical; (4)Flash/Data EEPROM Retention: > 40 Years; (5)Self-Programmable under Software Control; (6)Priority Levels for Interrupts; (7)8 × 8 Single-Cycle Hardware Multiplier; (8)Extended Watchdog Timer (WDT): Programmable period from 41 ms to 131s; (9)Single-Supply 5V In-Circuit Serial Programming (ICSP) via Two Pins; (10)In-Circuit Debug (ICD) via Two Pins; (11)Wide Operating Voltage Range: 2.0V to 5.5V.
