Product Summary
The FMMT718TA is a SOT23 PNP silicon power (switching) transistor.
Parametrics
FMMT718TA absolute maximum ratings: (1)Collector-Base Voltage VCBO -20 V; (2)Collector-Emitter Voltage VCEO -20 V; (3)Emitter-Base Voltage VEBO -5 V; (4)Continuous Collector Current IC -1.5 A; (5)Peak Pulse Current (Note 1) ICM -6 A; (6)Base Current IB -500 mA.
Features
FMMT718TA features: (1)625mW POWER DISSIPATION; (2)IC CONT = 2.5A; (3)IC Up to 10A Peak Pulse Current; (4)Excellent hFE Characteristics Up To 10A (pulsed) ; (5)Low Saturation Voltage E.g. 10mV Typ. ; (6)Low equivalent on-resistance RCE(sat)=97mΩ at 1.5A; (7)Complementary part number FMMT618.

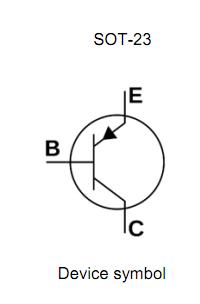

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

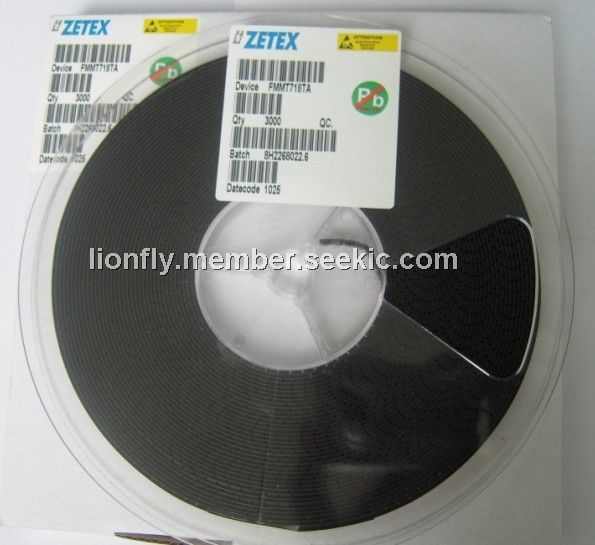

 FMMT718TA |
Diodes Inc. |
Transistors Bipolar (BJT) PNP SuperSOT |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
FMMT2222 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
FMMT2222A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
FMMT2222ATA |
|
TRANSISTOR NPN 40V 600MA SOT23-3 |
Data Sheet |
Negotiable |
|
||||||||||||
|
FMMT2369 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
FMMT2369A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
FMMT2369ATA |
Diodes Inc. / Zetex |
Transistors Bipolar (BJT) - |
Data Sheet |
Negotiable |
|
||||||||||||
