Product Summary

The EP2C5F256C6 is an FPGA. The device contains a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnects of varying speeds provide signal interconnects between logic array blocks (LABs). The EP2C5F256C6 is embedded memory blocks, and embedded multipliers. The low cost and optimized feature set of the EP2C5F256C6 make them ideal solutions for a wide array of automotive, consumer, communications, video processing, test and measurement, and other end-market solutions.

Parametrics

EP2C5F256C6 absolute maximum ratings: (1)Supply voltage: -0.5 to 1.8V; (2)Output supply voltage: -0.5 to 4.6V; (3)PLL supply voltage: -0.5 to 1.8V; (4)DC input voltage: -0.5 to 4.6V; (5)DC output current, per pin: -25 to 40 mA; (6)Storage temperature: -65 to +150℃; (7)Junction temperature: 125℃.

Features

EP2C5F256C6 features: (1)High-density architecture with 4,608 to 68,416 LEs; (2)Embedded multipliers; (3)Advanced I/O support; (4)Flexible clock management circuitry; (5)Device configuration; (6)Intellectual property.

Diagrams

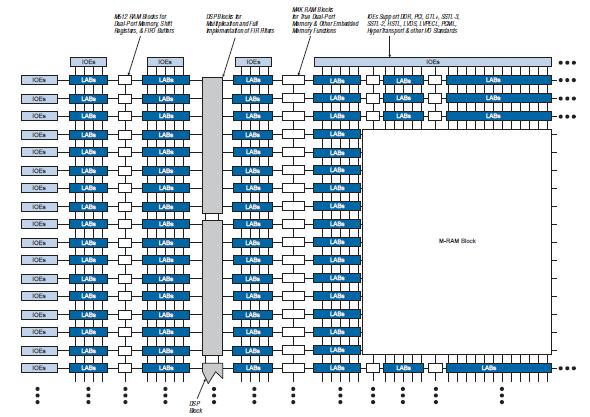

EP2C5F256C6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2C5F256C6
EP2C5F256C6


IC CYCLONE II FPGA 5K 256-FBGA

Data Sheet

0-90: $14.78
EP2C5F256C6N
EP2C5F256C6N


IC CYCLONE II FPGA 5K 256-FBGA

Data Sheet

0-1: $13.44
