MCP1703T-3302ECB

LDO voltage regulator, SOT, +18V, 500 mA, MCP1703T-3302ECB, Microchip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~4.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~4.20

PartNumber:: MCP1703T-3302ECB

Brand:: Microchip Technology - Microchip | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-02

From Other Seller

Part Number:MCP1703T-3302ECB
US $4.00 - 4.20
ATMEGA168-20AU

US $2.00 - 4.00 / Piece
(0) Remove
MC-5486C

US $32.00 - 36.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

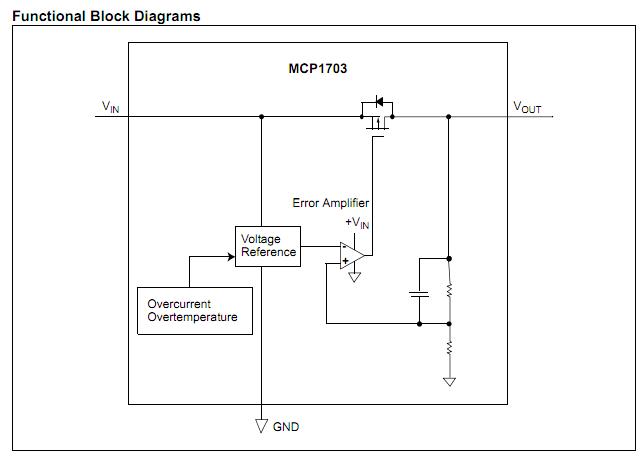

The MCP1703T-3302ECB is a CMOS low dropout (LDO) voltage regulator that can deliver up to 250 mA of current while consuming only 2.0 µA of quiescent current (typical). The input operating range is specified from 2.7V to 16.0V, making it an ideal choice for two to six primary cell battery-powered applications, 9V alkaline and one or two cell Li-Ion-powered applications. The applications of the MCP1703T-3302ECB include Battery-powered Devices, Battery-powered Alarm Circuits, Smoke Detectors, CO2 Detectors, Pagers and Cellular Phones, Smart Battery Packs, Low Quiescent Current Voltage Reference, PDAs, Digital Cameras, Microcontroller Power, Solar-Powered Instruments, Consumer Products and Battery Powered Data Loggers.

Parametrics

MCP1703T-3302ECB absolute maximum ratings: (1)VDD: +18V; (2)All inputs and outputs w.r.t: (VSS-0.3V) to (VIN+0.3V); (3)Peak Output Current: 500 mA; (4)Storage temperature: -65°C to +150℃; (5)Maximum Junction Temperature: +150℃; (6)ESD protection on all pins (HBM;MM): ≥ 4kV; ≥ 400V.

Features

MCP1703T-3302ECB features: (1)2.0 μA Typical Quiescent Current; (2)Input Operating Voltage Range: 2.7V to16.0V; (3)250 mA Output Current for Output Voltages ≥ 2.5V; (4)200 mA Output Current for Output Voltages < 2.5V; (5)Low Drop Out Voltage, 625 mV typical @ 250 mA for VR = 2.8V; (6)0.4% Typical Output Voltage Tolerance; (7)Standard Output Voltage Options:- 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.0V, 5.0V; (8)Output voltage range: 1.2V to 5.5V in 0.1V increments (50 mV increments available upon request); (9)Stable with 1.0 μF to 22 μF ceramic output capacitance; (10)Short-Circuit Protection; (11)Overtemperature Protection.
