ADG529AK

PLCC-28, CMOS, latched 8-/16-channel, analog multiplexer, 44 V, Low leakage, 20 pA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.50~11.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.50~11.50

PartNumber:: ADG529AK

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-23

From Other Seller

Part Number:ADG529AK
US $10.50 - 11.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

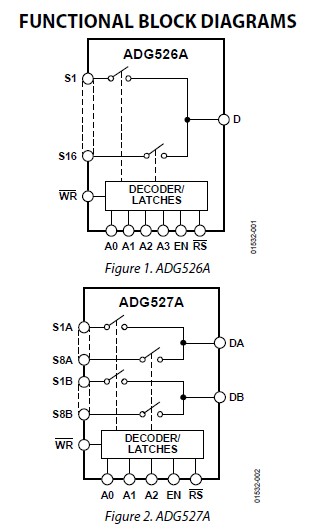

The ADG529AK is a CMOS latched 8-/16-channel analog multiplexer. The ADG529AK is a CMOS monolithic analog multiplexer with 16 single channels and dual 8 channels, respectively. On-chip latches facilitate microprocessor interfacing. The ADG529AK switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG529AK switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic-compatible digital inputs.

Parametrics

ADG529AK absolute maximum ratings: (1)VDD to VSS: 44 V; (2)VDD to GND: 25 V; (3)VSS to GND: -25 V; (4)Analog Inputs1 Voltage at Sx or Dx Pins: VSS . 2 V to VDD + 2V or 20 mA, whichever occurs first; (5)Continuous Current, Sx or Dx Pins: 20 mA; (6)Pulsed Current, Sx or Dx Pins 1 ms Duration, 10% Duty Cycle: 40 mA; (7)Digital Inputs Voltage at A, EN, WR, RS: VSS . 4 V to VDD + 4 V or 20 mA, whichever occurs first.

Features

ADG529AK features: (1)44 V supply maximum rating; (2)VSS to VDD analog signal range; (3)Single- or dual-supply specifications; (4)Wide supply ranges (10.8 V to 16.5 V); (5)Microprocessor compatible (100 ns WR pulse); (6)Extended plastic temperature range (.40 to +85℃); (7)Low leakage (20 pA typical); (8)Low power dissipation (28 mW maximum); (9)Available in PDIP, CERDIP, SOIC, and PLCC packages; (10)Superior alternative to DG526 and DG527.
