TPA3106D1VFPG4

Class-D audio power amplifier, 40W, 32LQFP, 10 V to 26 V, 4Ω, 36 dB, TPA3106D1VFPG4

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~3.00

PartNumber:: TPA3106D1VFPG4

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-18

From Other Seller

Part Number:TPA3106D1VFPG4
US $2.50 - 3.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

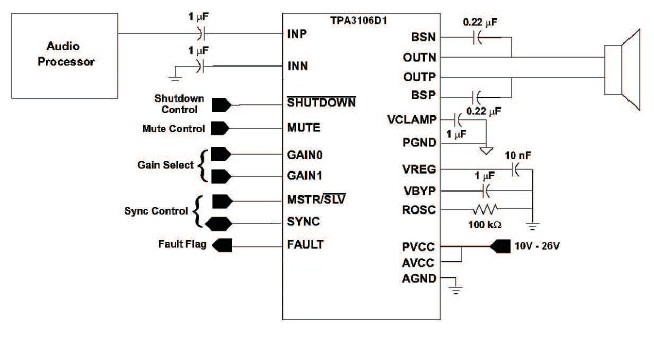

The TPA3106D1VFPG4 is a 40-W efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3106D1VFPG4 can drive stereo speakers as low as 4Ω. The high efficiency, ~92%, of the device eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB. The outputs of the TPA3106D1VFPG4 are fully protected against shorts to GND, VCC, and output-to-output shorts with an auto recovery feature and monitor output. Applications include: Televisions, Powered Speakers.

Parametrics

TPA3106D1VFPG4 absolute maximum ratings: (1)VCC Supply voltage AVCC, PVCC: –0.3 V to 30 V; (2)VI Input voltage SHUTDOWN, MUTE: –0.3 V to VCC + 0.3 V; GAIN0, GAIN1, INN, INP, MSTR/SLV, SYNC: –0.3 V to VREG + 0.5 V; (3)TA Operating free-air temperature range: –40℃ to 85℃; (4)TJ Operating junction temperature range: –40℃ to 150℃; (5)Tstg Storage temperature range: –65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (7)RLoad Load resistance: 3.2 Ω Minimum; (8)Electrostatic discharge Human body model (all pins): ±2 kV; Charged-device model (all pins): ±500 V.

Features

TPA3106D1VFPG4 features: (1)40-W Into an 8-Ω Load From a 25-V Supply; (2)Operates From 10 V to 26 V; (3)Efficient Class-D Operation Eliminates the Need for Heat Sinks; (4)Four Selectable, Fixed Gain Settings; (5)Differential Inputs; (6)Thermal and Short-Circuit Protection With Auto Recovery Feature; (7)Clock Output for Synchronization With Multiple Class-D Devices; (8)Surface Mount 7×7, 32-pin HLQFP Package.
