Product Summary

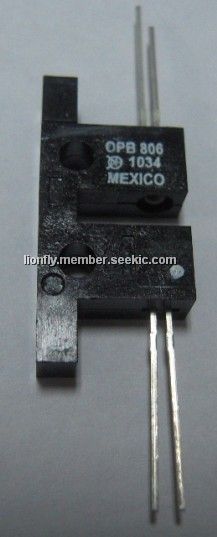

The OPB806 slotted optical switch consists of an infrared emitting diode (LED) and a NPN silicon phototransistor, mounted on opposite sides of a 0.125 (3.175 mm) wide slot. The OPB806 has two sets of mounting tabs allowing Base or Side mounting of the device. The LED and phototransistor leads project from each side of the housing on 0.050 (1.27 mm) centers.

Parametrics

OPB806 absolute maximum ratings: (1)Storage & Operating Temperature Range: -40° C to +85° C; (2)Lead Soldering Temperature [1/16 inch (1.6mm) from the case for 5 sec. with soldering iron]: 260° C; (3)Continuous Forward Current: 50 mA; (4)Peak Forward Current (1 μs pulse width, 300 pps): 3 A; (5)Reverse Voltage: 2 V; (6)Power Dissipation: 100 mW; (7)Collector-Emitter Voltage: 30 V; (8)Emitter-Collector Voltage: 5 V; (9)Power Dissipation: 100 mW.

Features

OPB806 features: (1)Non-contact switching; (2)Base or side mounting; (3)0.125 (3.175 mm) slot width.

Diagrams

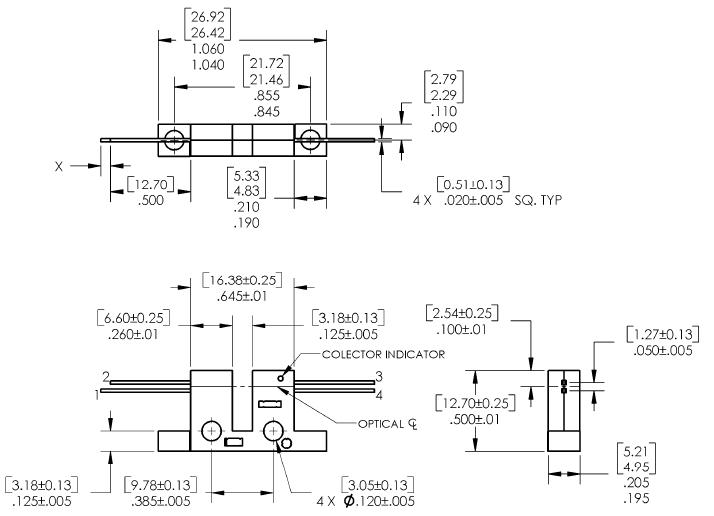

OPB806 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPB806
OPB806
Optek
Optical Switches, Transmissive, with Phototransistor Output Slotted Opt Switch
Data Sheet
0-1: $1.86
1-50: $1.79
50-100: $1.73
100-250: $1.68
