Product Summary

The HD74LS125AP is a Quadruple Bus Buffer Gate.

Parametrics

HD74LS125AP absolute maximum ratings: (1)Supply voltage VCC 7 V; (2)Input voltage VIN 7 V; (3)Power dissipation PT 400 mW; (4)Storage temperature Tstg –65 to +150℃.

Features

HD74LS125AP features: (1)Supply voltage VCC 4.75 5.00 5.25 V ; (2)High level output current IOH: –2.6 mA ; (3)Low level output current IOL: 24 mA ; (4)Operating temperature Topr –20 25 75℃.

Diagrams

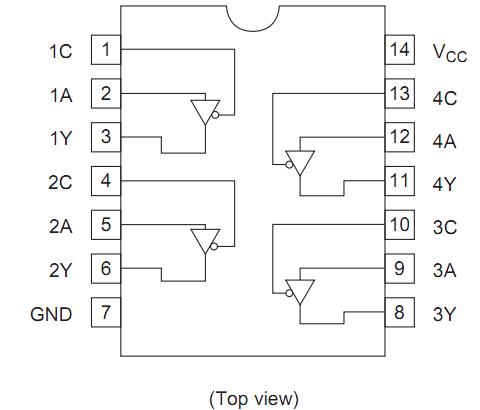

HD74LS125AP block diagram
