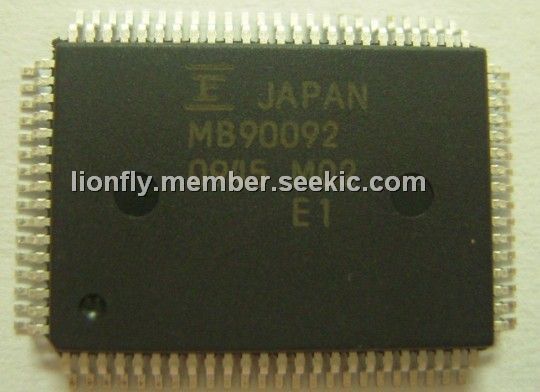

MB90092, ON-Screen Display Controller, QFP-80, 7V, 50mA, Fujitsu Media Devices Limited

Rated 5 Rating 5 | reviews | Write a review

Price:: US $26.00~26.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $26.00~26.50

PartNumber:: MB90092

Brand:: Fujitsu Media Devices Limited - FMDL | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-22

From Other Seller

Part Number:MB90092
US $26.00 - 26.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

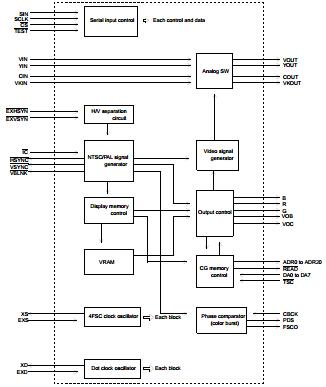

The MB90092 is an ON-Screen display controller designed for displaying text and graphics on the TV screen. The MB90092 incorporates display memory (VRAM), a font memory interface, and a video signal generator, allowing text and graphics to be displayed in conjunction with a small number of external components. The MB90092 can provide two screens, called the main screen and the sub-screen, either independently or overlayed one on top of the other.

Parametrics

MB90092 absolute maximum ratings: (1)Supply voltage, VCC: VSS -0.3 to VSS +7.0 V; AVCC1: VSS -0.3 to VSS +7.0 V; AVCC2: VSS -0.3 to VSS +7.0 V; (2)Input voltage, VIN: VSS -0.3 to VSS +7.0 V; (3)Output voltage, VOUT: VSS -0.3 to VSS +7.0 V; (4)Power consumption, Pd: 600 mW; (5)Operating temperature, Ta: -40 to +85℃; (6)Storage temperature, Tstg: -55 to +150℃.

Features

MB90092 features: (1)Screen display capacity: 24 characters ×12 lines (up to 288 characters); (2)Character sizes: Standard, double width, double height, double width × double height, quadruple width ×double height (Setting possible for each line); (3)Display position control: Horizontal display start position: Set in 1/3-character units; Vertical display start position: Set in raster units; Line spacing control: Set in raster units (0 to 15 rasters); (4)Display priority control: Capable of controlling display riority over the sub-screen (for each line); (5)Normal character exclusive display mode, Screen capacity: 24 characters × 12 lines (up to 288 characters) Character types: 8192 different characters (8 M addresses); (6)Character display: Character dot configuration: 24 ×32 dots (per character); Character color: 8 colors (for each character) ×4 phases (for each line); Character background color: 8 colors (for each character); Display mode: Selectable from among the pattern background/solid-fill backgroundor/no background modes.
