Product Summary

The TPM10215 is a switching power supply comprising 51 standard models, and offers highest power density in a full encapsulated module. This feature makes these modules an ideal solution for all space critical applications incommercial and industrial electronic equipment. Full compliance to Euro-pean low voltage and EMC directive, UL and cUL safety approval quali-fies this product for worldwide markets. SMD-technology and a high efficiency guarantees a high reliability of these MiniSwitcher.

Parametrics

TPM10215 absolute maximum ratings: (1)Input voltage range: 85 – 264 VAC (100 –375 VDC); (2)Input frequency: 47 – 400 Hz; (3)Input current no load: 115 VAC /230 VAC; (4)Input current full load: 115 VAC /230 VAC; (5)Inrush current (< 2 ms): 115 VAC /230 VAC.

Features

TPM10215 features: (1)Miniature AC/DC Switching; Power Modules; (2)PCB Mounting with Solder Pins or Chassis; Mounting with Screw Terminals; (3)Single, Dual and Triple Output Models; (4)Universal Input 85-264 VAC, 47–400 Hz; (5)High Efficiency; (6)EMI meets EN 55022, Class B andFCC, Level B; (7)Low Ripple and Noise; (8)Short Circuit and Overload Protection; (9)Safety Class II Product; (10)2 Year Product Warranty.

Diagrams

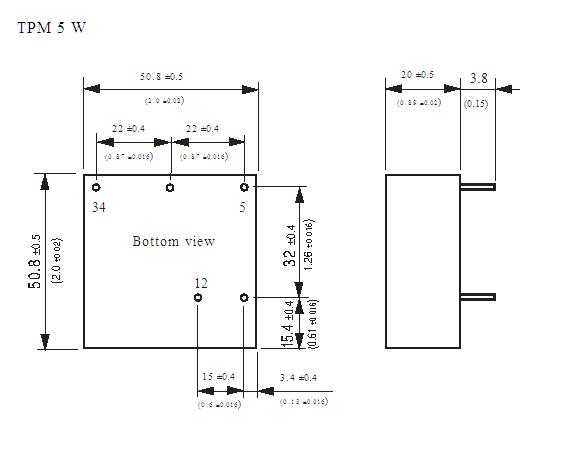

TPM10215 block diagram

TPM1919-60
TPM1919-60
