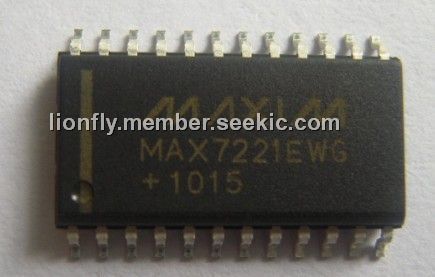

MAX7221EWG

MAX7221EWG, driver, Maxim, SOP, -0.3V to 6V, 1066mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $52.00~55.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $52.00~55.00

PartNumber:: MAX7221EWG

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-18

From Other Seller

Part Number:MAX7221EWG
US $52.00 - 55.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

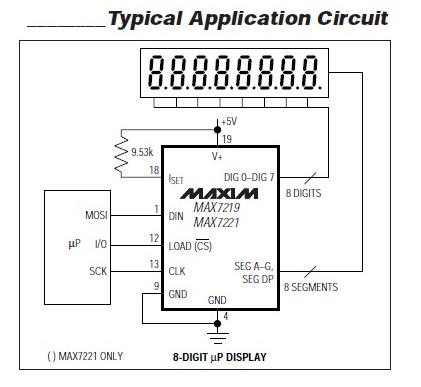

The MAX7221EWG is a compact, serial input/output common-cathode display driver that interface microprocessor (μP) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Included on-chip are a BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs. The MAX7221CWG is compatible with SPI, QSPI, and Microwire, and has slew-ratelimited segment drivers to reduce EMI.

Parametrics

MAX7221EWG absolute maximum ratings: (1)Voltage (with respect to GND): V+: -0.3V to 6V; DIN, CLK, LOAD, CS: -0.3V to 6V; All Other Pins: -0.3V to (V+ + 0.3V); (2)Current: DIG0–DIG7 Sink Current: 500mA; SEGA–G, DP Source Current: 100mA; (3)Continuous Power Dissipation (TA = +85℃): Narrow Plastic DIP (derate 13.3mW/℃; (4)above +70℃): 1066mW; Wide SO (derate 11.8mW/℃ above +70℃): 941mW; Narrow CERDIP (derate 12.5mW/℃ above +70℃): 1000mW; (5)Operating Temperature Ranges (TMIN to TMAX): 0℃ to +70℃; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

MAX7221EWG features: (1)10MHz Serial Interface; (2)Individual LED Segment Control; (3)Decode/No-Decode Digit Selection; (4)150μA Low-Power Shutdown (Data Retained); (5)Digital and Analog Brightness Control; (6)Display Blanked on Power-Up; (7)Drive Common-Cathode LED Display; (8)Slew-Rate Limited Segment Drivers for Lower EMI (MAX7221); (9)SPI, QSPI, Microwire Serial Interface (MAX7221); (10)24-Pin DIP and SO Packages.
