Product Summary

The FS100R12KT3 is an IGBT module.

Parametrics

FS100R12KT3 absolute maximum ratings: (1) repetitive peak reverse voltage, VRRM: 1200V; (2) DC forward current, IF: 100A; (3) repetitive peak forward current, IFRM: 200A; (4) I2t-value, I2t: 1950A2s.

Features

FS100R12KT3 features: (1) collector-emitter voltage, VCES: 1200V; (2) DC-collector current, IC: 100A; (3) repetitive peakd collector current, ICRM: 200A; (4) total power dissipation, Ptot: 480W; (5) gate-emitter peak voltage, VGES: ±20V.

Diagrams

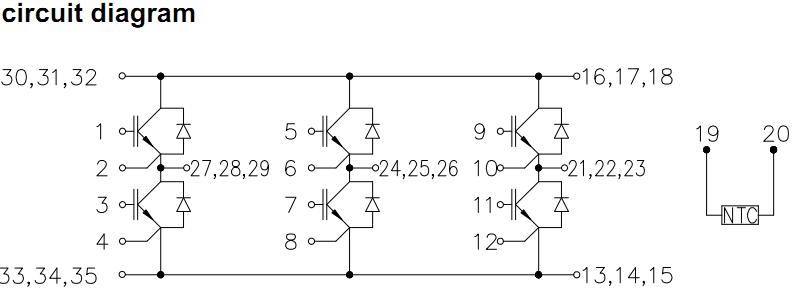

FS100R12KT3 block diagram
