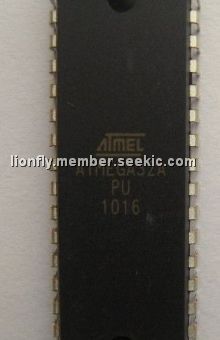

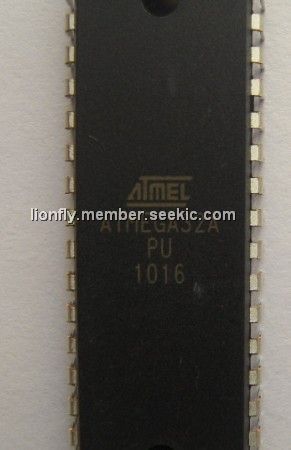

ATMEGA32A-PU

low-power CMOS 8-bit microcontroller, 32K, 16MHZ, 40-PDIP, 0.6mA, 2.7 - 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~7.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.00~7.50

PartNumber:: ATMEGA32A-PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-23

From Other Seller

Part Number:ATMEGA32A-PU
US $7.00 - 7.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

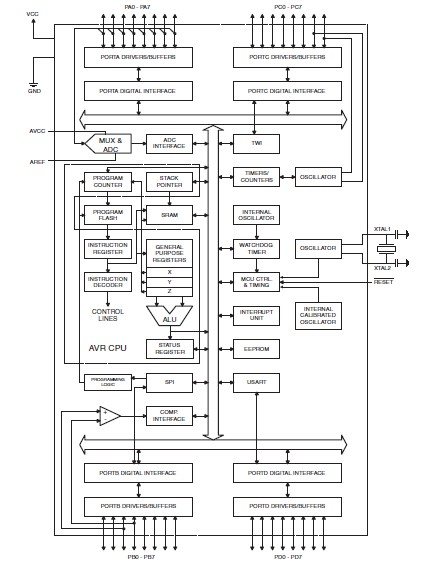

The ATMEGA32A-PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA32A-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATMEGA32A-PU is manufactured using Atmel high density nonvolatile memory technology. The Onchip ISP Flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional nonvolatile memory programmer, or by an On-chip Boot program running on the AVR core.

Parametrics

ATMEGA32A-PU absolute maximum ratings: (1)Data Bus Width: 8 bit; (2)Maximum Clock Frequency: 16 MHz; (3)Program Memory Size: 32 KB; (4)Data RAM Size: 2 KB; (5)Data ROM Size: 1024 B; (6)On-Chip ADC: Yes; (7)Number of Programmable I/Os: 32; (8)Number of Timers: 3; (9)Package / Case: PDIP-40; (10)Mounting Style: Through Hole; (11)Height: 4.83 mm; (12)Interface Type: 2-Wire, SPI, USART; (13)Length: 52.58 mm; (14)Maximum Operating Temperature: + 85℃; (15)Minimum Operating Temperature: - 40℃; (16)Packaging: Tube; (17)Program Memory Type: Flash; (18)Standard Pack Qty: 10; (19)Supply Voltage (Max): 5.5 V; (20)Supply Voltage (Min): 2.7 V; (21)Width: 13.97 mm.

Features

ATMEGA32A-PU features: (1)High-performance, Low-power Atmel VR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Special Microcontroller Features. Power-on Reset and Programmable Brown-out Detection; Internal Calibrated RC Oscillator; External and Internal Interrupt Sources; Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby; (6)Operating Voltages, 2.7 - 5.5V; (7)Speed Grades, 0 - 16MHz; (8)Power Consumption at 1 MHz, 3V, 25℃. Active: 0.6mA; Idle Mode: 0.2mA; Power-down Mode: < 1μA.
