AT49BV162A-70TI

AT49BV162A-70TI, ATMEL, TSOP, flash memory, -0.6V to +6.25V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $9.00~9.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $9.00~9.50

PartNumber:: AT49BV162A-70TI

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-21

From Other Seller

Part Number:AT49BV162A-70TI
US $9.00 - 9.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

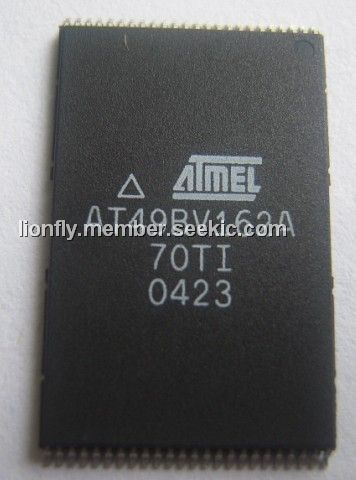

The AT49BV162A-70TI is a 2.7-volt 16-megabit flash memory organized as 1,048,576 words of 16 bits each or 2,097,152 bytes of 8 bits each. The x16 data appears on I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The memory of the AT49BV162A-70TI is divided into 71 sectors for erase operations. The device is offered in a 48-lead TSOP and a 48-ball CBGA package. The AT49BV162A-70TI has CE and OE control signals to avoid any bus contention. This device can be read or reprogrammed using a single power supply, making it ideally suited for in-system programming.

Parametrics

AT49BV162A-70TI absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Voltage on VPP with Respect to Ground: -0.6V to +13.0V; (5)Temperature under Bias: -55℃ to +125℃.

Features

AT49BV162A-70TI features: (1)Data Polling, Toggle Bit, Ready/Busy for End of Program Detection; (2)VPP Pin for Write Protection; (3)RESET Input for Device Initialization; (4)Sector Lockdown Support; (5)TSOP and CBGA Package Options; (6)Top or Bottom Boot Block Configuration Available; (7)128-bit Protection Register; (8)Minimum 100,000 Erase Cycles; (9)Common Flash Interface (CFI).
