Product Summary

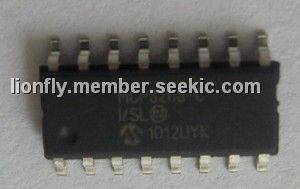

The MCP3208-CI/SL is a 12-bit Analog-to-Digital (A/D) Converter with on-board sample and hold circuitry. The MCP3208-CI/SL is programmable to pro-vide four pseudo-differential input pairs or eight single-ended inputs. Differential Nonlinearity (DNL) is specified at ±1 LSB, while Integral Nonlinearity (INL) is offered in ±1 LSB (MCP3204/3208-B) and ±2 LSB (MCP3204/3208-C) versions. The applications of the MCP3208-CI/SL are (1)Sensor Interface; (2)Process Control; (3)Data Acquisition; (4)Battery Operated Systems.
Parametrics
MCP3208-CI/SL absolute maximum ratings: (1)VDD: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VDD +0.6V; (3)Storage temperature: -65 to +150℃; (4)Ambient temp. with power applied: -65 to +125℃; (5)Soldering temperature of leads (10 seconds): +300℃; (6)ESD protection on all pins: > 4 kV.
Features
MCP3208-CI/SL features: (1)4 (MCP3204) or 8 (MCP3208) input channels; (2)Analog inputs programmable as single-ended or pseudo-differential pairs; (3)On-chip sample and hold; (4)SPI serial interface (modes 0,0 and 1,1); (5)Single supply operation: 2.7V - 5.5V; (6)100 ksps max. sampling rate at VDD = 5V; (7)50 ksps max. sampling rate at VDD = 2.7V; (8)Low power CMOS technology.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCP3208-CI/SL |
Microchip Technology |
ADC (A/D Converters) 12-bit SPI 8 Chl |
Data Sheet |
|
|
||||||||||||
