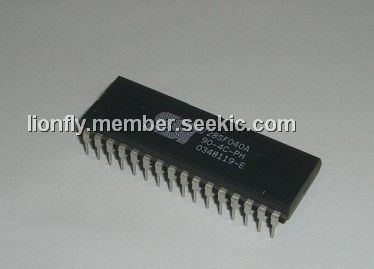

Product Summary

The SST28SF040A-90-4C-PH is a kind of 512K x8 bit CMOS Sector-Erase, Byte-Program EEPROM. The SST28SF040A-90-4C-NH is manufactured using SST proprietary, high performance CMOS SuperFlash EEPROM Technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternative approaches. The SST28SF040A-90-4C-PH erases and program with a single power supply. The device conforms to JEDEC standard pinouts for byte wide memories and are compatible with existing industry standard flash EEPROM pinouts.

Parametrics

SST28SF040A-90-4C-PH absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD + 0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -1.0V to VDD + 1.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 14.0V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Through Hold Lead Soldering Temperature (10 Seconds): 300℃; (8)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (9)Output Short Circuit Current: 100 mA.

Features

SST28SF040A-90-4C-PH features: (1)Single Voltage Read and Write Operations: 5.0V-only for SST28SF040A; 2.7-3.6V for SST28VF040A; (2)Superior Reliability: Endurance: 100,000 Cycles (typical); Greater than 100 years Data Retention; (3)Memory Organization: 512K x8; (4)Sector-Erase Capability: 256 Bytes per Sector; (5)Low Power Consumption: Active Current: 15 mA (typical) for 5.0V and 10 mA (typical) for 2.7-3.6V: Standby Current: 5 μA (typical); (6)Fast Sector-Erase/Byte-Program Operation: Byte-Program Time: 35 μs (typical); Sector-Erase Time: 2 ms (typical); Complete Memory Rewrite: 20 sec (typical); (7)Fast Read Access Time: 5.0V-only operation: 90 and 120 ns; 2.7-3.6V operation: 150 and 200 ns; (8)Latched Address and Data; (9)Hardware and Software Data Protection: 7-Read-Cycle-Sequence Software Data Protection; (10)End-of-Write Detection: Toggle Bit; Data# Polling; (11)TTL I/O Compatibility; (12)JEDEC Standard: Flash EEPROM Pinouts; (13)Packages Available: 32-lead PLCC; 32-lead TSOP (8mm x 14mm and 8mm x 20mm); 32-pin PDIP.

Diagrams

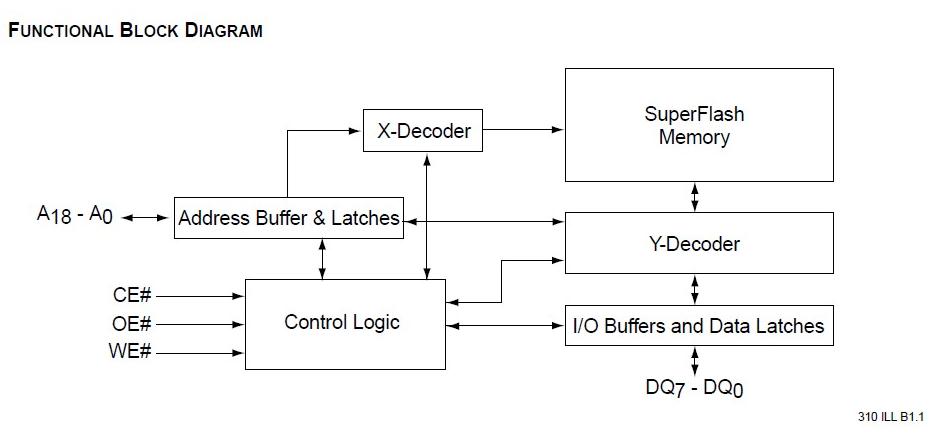

SST28SF040A-90-4C-PH block diagram
