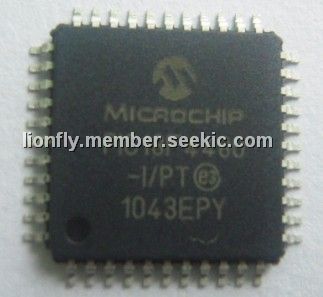

Pic18F4480-IP

SOIC, 18/20/28-Pin, high-performance, enhanced flash microcontroller , 10-bit A/D, nanoWatt technology, 200 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $19.50~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $19.50~20.00

PartNumber:: Pic18F4480-IP

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-22

From Other Seller

Part Number:Pic18F4480-IP
US $19.50 - 20.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The Pic18F4480-IP is a 18/20/28-Pin high-performance, enhanced flash microcontroller with 10-bit A/D and nanoWatt technology.

Parametrics

Pic18F4480-IP absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +5.5V; (5)Voltage on MCLR with respect to VSS (Note 2): 0V to +13.25V; (6)Voltage on RA4 with respect to Vss: 0V to +8.5V; (7)Total power dissipation (Note 1): 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by all ports: 200mA; (15)Maximum current sourced by all ports: 200 mA.

Features

Pic18F4480-IP features: (1)100,000 erase/write cycle Enhanced Flash program memory typical; (2)1,000,000 erase/write cycle Data EEPROM memory typical; (3)Flash/Data EEPROM Retention: > 40 years; (4)Self-programmable under software control; (5)Priority levels for interrupts; (6)8 x 8 Single-Cycle Hardware Multiplier; (7)Extended Watchdog Timer (WDT); (8)In-Circuit Debug (ICD) via two pins; (9)Wide operating voltage range: 2.0V to 5.5V.
