Product Summary

The MOC3083 is an optically coupled isolator consisting of a Gallium Arsenide infrared emitting diode coupled with a monolithic silicon detector performing the functions of a zero crossing bilateral triac mounted in a standard 6 pin dual-in-line package. Application areas of the MOC3083 include CRTs, Power Triac Driver.

Parametrics

MOC3083 absolute maximum ratings: (1)Storage Temperature: -400°C - +1500°C; (2)Operating Temperature: -400°C - +1000°C; (3)Lead Soldering Temperature: 2600°C; (4)Input-to-output Isolation Voltage (Pk): 7500 Vac.

Features

MOC3083 features: (1)10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no.; (2)High Isolation Voltage (5.3kVRMS ,7.5kVPK ); (3)Zero Voltage Crossing; (4)800V Peak Blocking Voltage; (5)All electrical parameters 100% tested; (6)Custom electrical selections available.

Diagrams

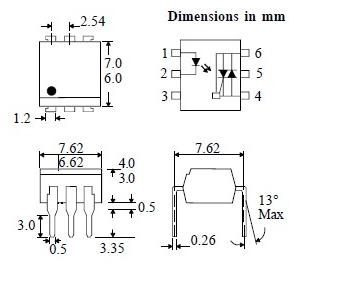

MOC3083 block diagram
