Product Summary

The LMH0302SQ is a 3Gbps HD/SD SDI Cable Driver. It is designed for use in SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M serial digital video applications. The LMH0302 drives 75Ω transmission lines (Belden 1694A, Belden 8281, or equivalent) at data rates up to 2.97 Gbps. The applications of the LMH0302SQ are (1)SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M serial digital interfaces; (2)Digital video routers and switches; (3)Distribution amplifiers.

Parametrics

LMH0302SQ absolute maximum ratings: (1)Supply Voltage: -0.5V to 3.6V; (2)Input Voltage (all inputs) -0.3V to VCC+0.3V; (3)Output Current 28mA; (4)Storage Temperature Range -65 to +150℃; (5)Junction Temperature +150℃; (6)Lead Temperature (Soldering 4 Sec) +260℃; (7)ESD Rating (HBM) 4kV; (8)ESD Rating (MM) 250V.

Features

LMH0302SQ features: (1)SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant; (2)Data rates to 2.97 Gbps; (3)Differential input; (4)75Ω differential output; (5)Selectable slew rate; (6)Output driver power down control; (7)Single 3.3V supply operation; (8)Commercial operating temperature range: 0 to +70℃; (9)Typical power consumption: 129 mW in SD mode and 162mW in HD mode; (10)16–pin LLP package; (11)Footprint compatible with the LMH0002SQ; (12)Replaces the Gennum GS2978.

Diagrams

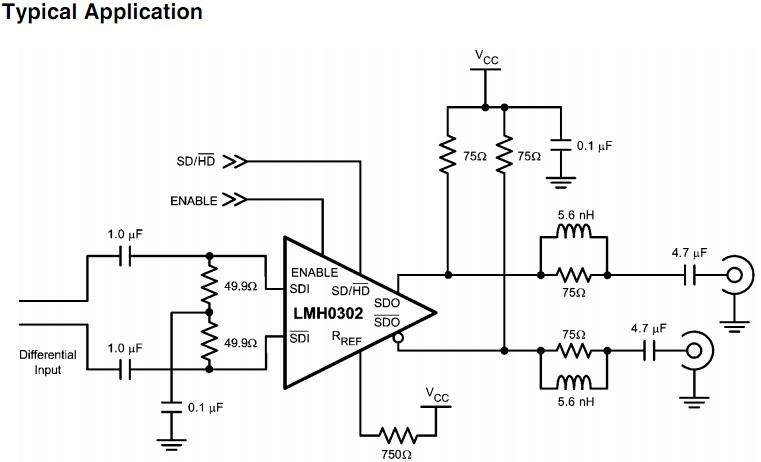

LMH0302SQ block diagram
