Product Summary
The LAN8710A-EZK is a MII/RMII 10/100 Ethernet Transceiver with HP Auto-MDIX and flexPWR Technology in a Small Footprint. The applications of the device are (1)Set-Top Boxes; (2)Networked Printers and Servers; (3)Test Instrumentation; (4)LAN on Motherboard; (5)Embedded Telecom Applications; (6)Video Record/Playback Systems; (7)Cable Modems/Routers; (8)DSL Modems/Routers; (9)Digital Video Recorders; (10)IP and Video Phones; (11)Wireless Access Points; (12)Digital Televisions; (13)Digital Media Adaptors/Servers; (14)Gaming Consoles; (15)POE Applications.
Parametrics
LAN8710A-EZK absolute maximum ratings: (1)VDD1A, VDD2A, VDDIO, Power pins to all other pins: -0.5 to +3.6 V; (2)Digital IO To VSS ground: -0.5 to +3.6 V; (3)VSS VSS to all other pins: -0.5 to +0.5 V; (4)Operating Temperature: 0 to +85℃; (5)Storage Temperature: -55 to +150℃.
Features
LAN8710A-EZK features: (1)Compliant with IEEE802.3/802.3u (Fast Ethernet); (2)Compliant with ISO 802-3/IEEE 802.3 (10BASE-T); (3)Loop-back modes; (4)Auto-negotiation; (5)Automatic polarity detection and correction; (6)Link status change wake-up detection; (7)Vendor specific register functions; (8)Supports both MII and the reduced pin count RMII interfaces.

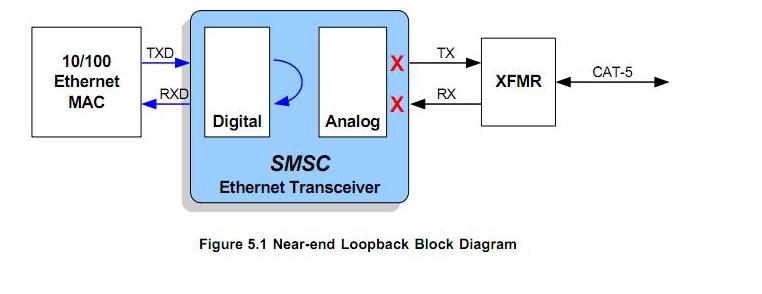

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LAN8710A-EZK |
SMSC |
Ethernet ICs 10/100 Ethernet XCVR w/HPAutoMDIX FlexPwr |
Data Sheet |
|
|
||||||||||||
|
LAN8710A-EZK-TR |
SMSC |
Ethernet ICs 10/100 Ethernet XCVR w/HPAutoMDIX FlexPwr |
Data Sheet |
|
|
||||||||||||
