Product Summary

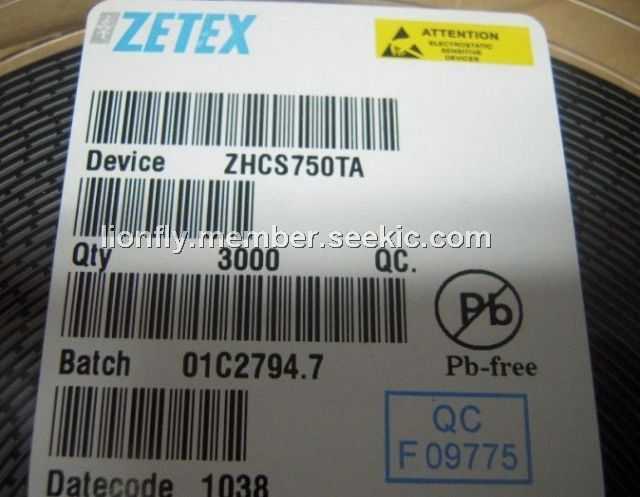

The ZHCS750TA is a 40V silicon high current schottky barrier diode. A surface mount Schottky Barrier Diode featuring low forward voltage drop suitable for high frequency rectification and reverse voltage protection.
Parametrics
ZHCS750TA absolute maximum ratings: (1)Continuous Reverse Voltage, VR: 40 V; (2)Forward Current, IF: 2A ; (3)Average Peak Forward Current; D.C.= 50%, IFAV: 4A ; (4)Non Repetitive Forward Current t≤100μs, IFSM: 20A; t≤10ms, IFSM: 10A; (5)Power Dissipation at Tamb= 25℃, Ptot: 1.1 W; (6)Storage Temperature Range, Tstg: -55 to +150℃; (7)Junction Temperature Tj: 125℃.
Features
ZHCS750TA features: (1)High current capability; (2)Low forward voltage (VF max= 0.5V); (3)Fast recovery time; (4)Small package size.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ZHCS750TA |
Diodes Inc. |
Schottky (Diodes & Rectifiers) VR=40V IF=750mA IR=100uA |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
ZHCS1000 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
ZHCS1000TA |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 1A Schottky 40V |
Data Sheet |
|
|
||||||||||||
|
ZHCS1000TC |
Diodes Inc. / Zetex |
Schottky (Diodes & Rectifiers) VR=40V IF=1.0A IR=50uA |
Data Sheet |
|
|
||||||||||||
|
ZHCS1006 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
ZHCS1006TA |
Diodes Inc. / Zetex |
Schottky (Diodes & Rectifiers) VR=60V IF=0.9A IR=50uA |
Data Sheet |
Negotiable |
|
||||||||||||
|
ZHCS1006TC |
Diodes Inc. / Zetex |
Schottky (Diodes & Rectifiers) VR=40V IF=0.9A IR=50uA |
Data Sheet |
Negotiable |
|
||||||||||||
