Product Summary

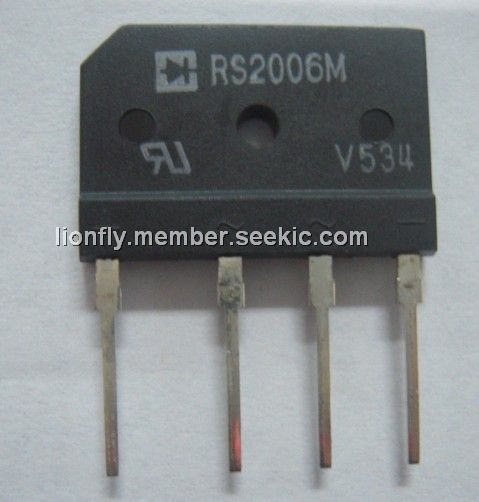

The RS2006M is a single-phase silicon bridge rectifier. It is ideal for printed cikcuit boakds.
Parametrics
RS2006M absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 800V; (2)Maximum RMS Bridge Input Voltage: 560V; (3)Maximum DC Blocking Voltage: 800; (4)Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load: 300Amps; (5)Operating and Storage Temperature Range: -55 to + 1500℃.
Features
RS2006M features: (1)Low leakage ; (2)Low forward voltage; (3)Mounting position: Any; (4)Surge overload rating: 300 amperes peak; (5)Ideal for printed cikcuit boakds; (6)High forward surge current capability.

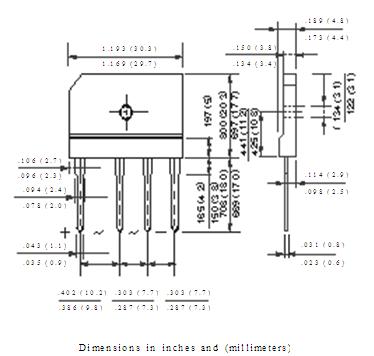

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() RS2006M |
![]() Rectron |
![]() Bridge Rectifiers 20A 800V |
![]() Data Sheet |
![]()
|
|
||||||||||||
