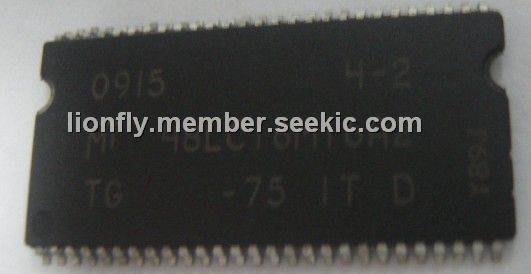

MT48LC16M16A2P

Product Summary

The MT48LC16M16A2P is a high-speed CMOS, dynamic random-access memory containing 268,435,456 bits. The MT48LC16M16A2P is internally configured as a quad-bank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the x4s 67,108,864-bit banks is organized as 8192 rows by 2048 columns by 4 bits. Each of the x8s 67,108,864-bit banks is organized as 8192 rows by 1024 columns by 8 bits. Each of the x16s 67,108,864-bit banks is organized as 8192 rows by 512 columns by 16 bits. Read and write accesses to the SDRAM are burst-oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of an ACTIVE command, which is then followed by a READ or WRITE command. The address bits registered coincident with the ACTIVE command are used to select the bank and row to be accessed (BA[1:0] select the bank; A[12:0] select the row). The address bits registered coincident with the READ or WRITE command are used to select the starting column location for the burst access.

Parametrics

MT48LC16M16A2P absolute maximum ratings:(1)Voltage on VDD/VDDQ supply relative to VSS, VDD/VDDQ: –1 to +4.6V; (2)Voltage on inputs, NC, or I/O balls relative to VSS, VIN: –1 to +4.6V; (3)Storage temperature (plastic), TSTG: –55 to +150℃; (4)Power dissipation: 1W.

Features

MT48LC16M16A2P features:(1)PC100- and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal, pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto precharge, includes concurrent auto precharge and auto refresh modes; (7)Self refresh mode (not available on AT devices); (8)Auto refresh: 64ms, 8192-cycle (commercial and industrial), 16ms, 8192-cycle (automotive); (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ±0.3V power supply.

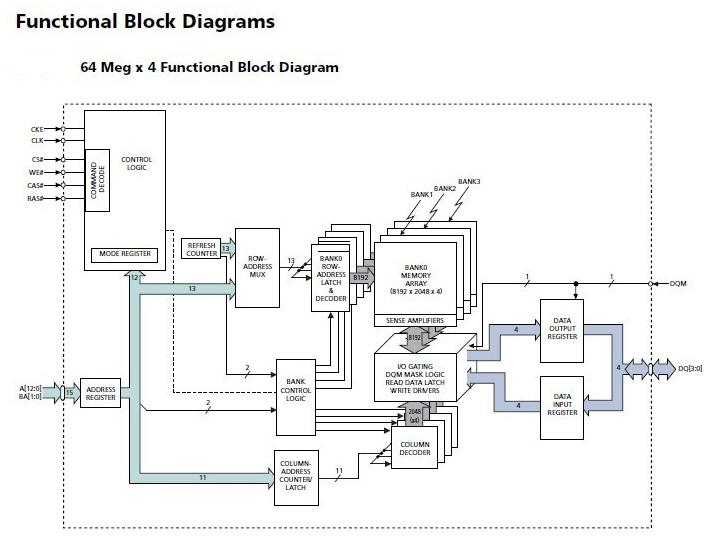

Diagrams
