Product Summary

M/A-COM MASWSS0151TR is a GaAs MMIC SPDT switch in a low cost, lead-free SC70 (SOT-363)surface mount plastic package. The MASWSS0151TR is ideally suited for applications that include transmit / receive switching for Bluetooth and WLANequipment. The MASWSS0151TR can also be used in applications up to 500 mW in cellular, PCS, DCS1800, GSM,CDMA, and other analog and digital wireless communications systems.The MASWSS0151TR is fabricated using a 0.5 microngate length GaAs PHEMT process. The process features full passivation for performance andreliability.

Parametrics

MASWSS0151TR absolute maximum ratings: TA = 25°C, VC = 0 V / -3.0 V, Pin = 0 dBm, Z0 = 50 Ω.

Features

MASWSS0151TR features: (1)Low Insertion Loss: 0.65 dB @ 2.4 GHz; (2)Isolation: 24 dB @ 2.4 GHz; (3)Low Current Consumption: <10 μA @ -3 V; (4)Lead-Free SOT-363 Plastic Package; (5)100% Matte Tin Plating over Copper; (6)Halogen-Free Green Mold Compound; (7)260°C Reflow Compatible; (8)RoHS Compliant Version of the SW-438.

Diagrams

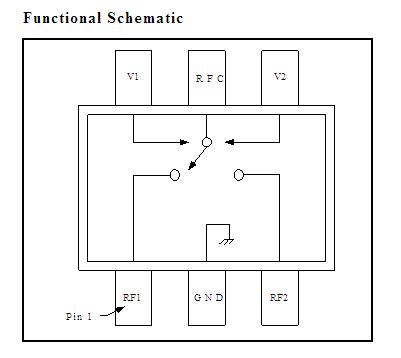

MASWSS0151TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MASWSS0151TR-3000
MASWSS0151TR-3000
M/A-COM Technology Solutions
RF Switch ICs DC-3.0GHz ISO 25dB IL <.65dB @ 2.4GHz
Data Sheet
0-1: $0.36
1-10: $0.30
10-50: $0.27
50-100: $0.24
